5.3.1. Womersley flow
As an example for the action of inertia in this equation, we calculate a Womersley pipe flow, i.e. a flow through a pipe driven by an oscillating pressure:
class WomersleyFlowProblem(Problem):
def __init__(self):
super(WomersleyFlowProblem, self).__init__()
self.rho,self.mu=10,1 # density and viscosity
self.omega,self.delta_p=10,10 # frequency and pressure amplitude
self.L,self.R=1,1 # size of the pipe
# Corresponding to a Womersley number of 10
self.max_refinement_level=3 # refine due to the velocity profile
def define_problem(self):
self.set_coordinate_system("axisymmetric") # Pipe: Axisymmetric
Nr=4 # number of radial mesh elements
self.add_mesh(RectangularQuadMesh(N=[Nr,int(self.L/self.R*Nr)],size=[self.R,self.L]))
eqs=NavierStokesEquations(self.rho,self.mu)
eqs+=MeshFileOutput()
eqs+=DirichletBC(velocity_x=0)@"left" # no r-velocity at the axis
eqs+=DirichletBC(velocity_x=0,velocity_y=0)@"right" # no-slip at the wall
eqs+=DirichletBC(velocity_x=0)@"top" # no r-velocity at in and outflow
eqs+=DirichletBC(velocity_x=0)@"bottom"
# impose oscillating pressure
eqs+=NeumannBC(velocity_y=-self.delta_p*cos(self.omega*var("time")))@"bottom"
eqs+=SpatialErrorEstimator(velocity=1) # Refine where necessary
# eqs+=DirichletBC(velocity_x=0) # We can also deactivate the entire x-velocity in this problem
self.add_equations(eqs@"domain") # adding the equation
if __name__=="__main__":
with WomersleyFlowProblem() as problem:
problem.run(1,outstep=True,startstep=0.01,spatial_adapt=1)

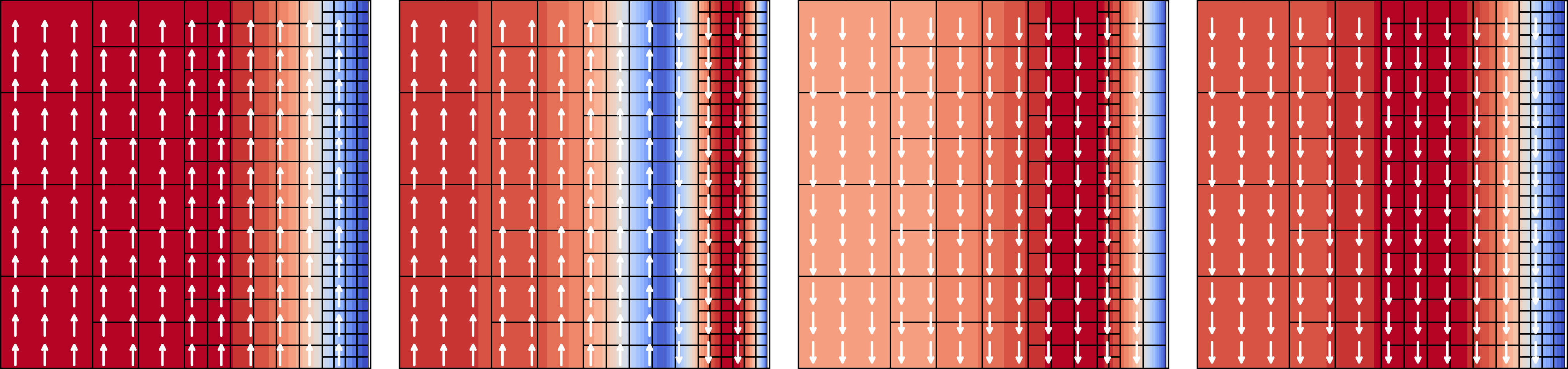

Due to the inertia, the flow reversal does not happen instantaneously, but shows a Womersley flow profile, see Fig. 5.6.
Fig. 5.6 Womersley flow in a pipe
